Cube Kathmandu Hybrid EXC 800 black n prism

Touring E-Bike Men

Article no: 812500-3

Technical details

Frameset

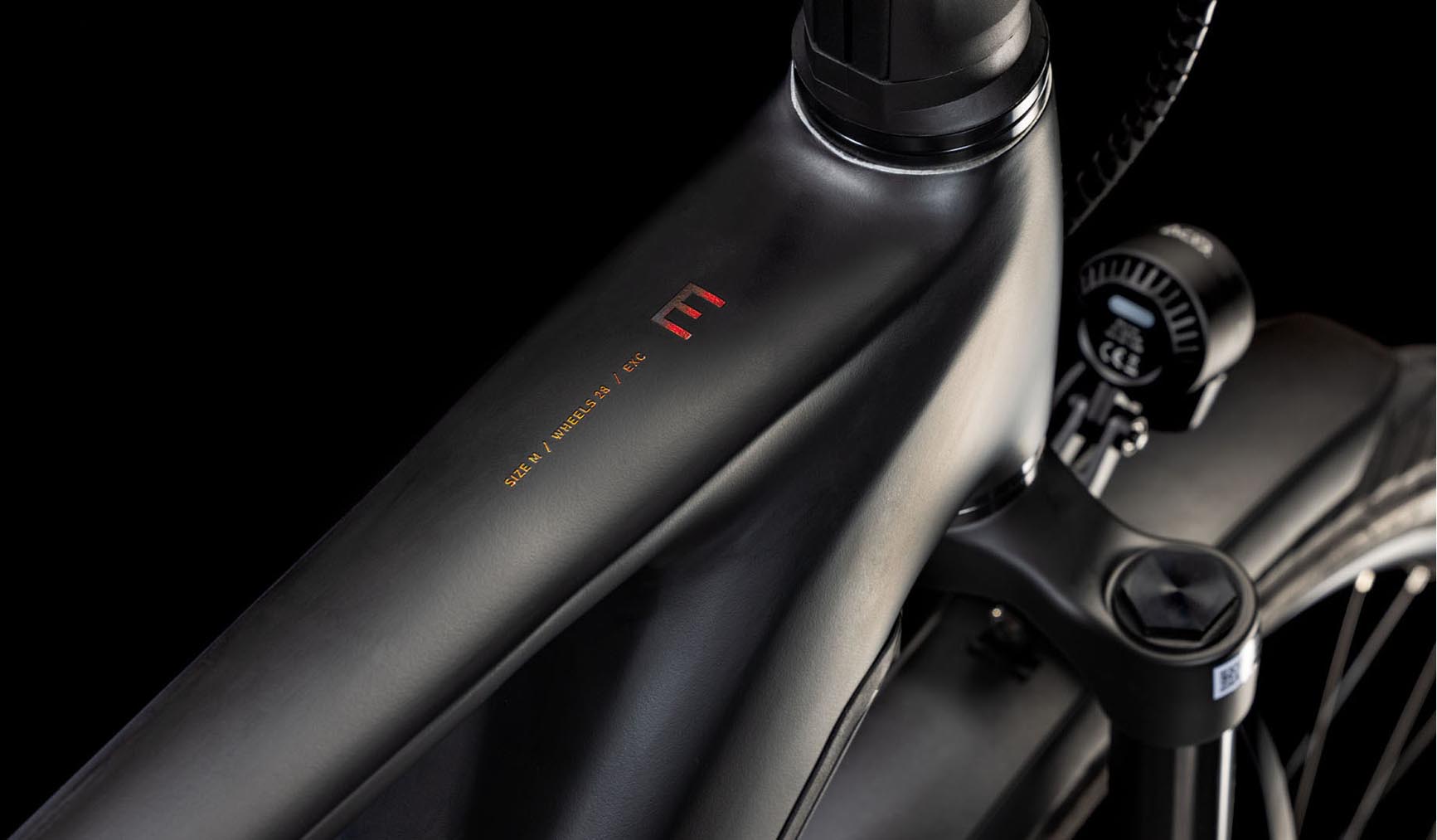

  • Frame: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube
  • Size: Classic: 50cm, 54cm, 58cm, 62cm
  • Fork: Fox 34 Float Sport AWL , Tapered, 15x110mm, E-Bike Optimized, 100mm
  • Headset: ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
Equipment
  • Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
  • Handlebar: CUBE Comfort Trail Bar, 700mm
  • Grips: ACID Travel Comfort
  • Pedals: ACID PP MTB

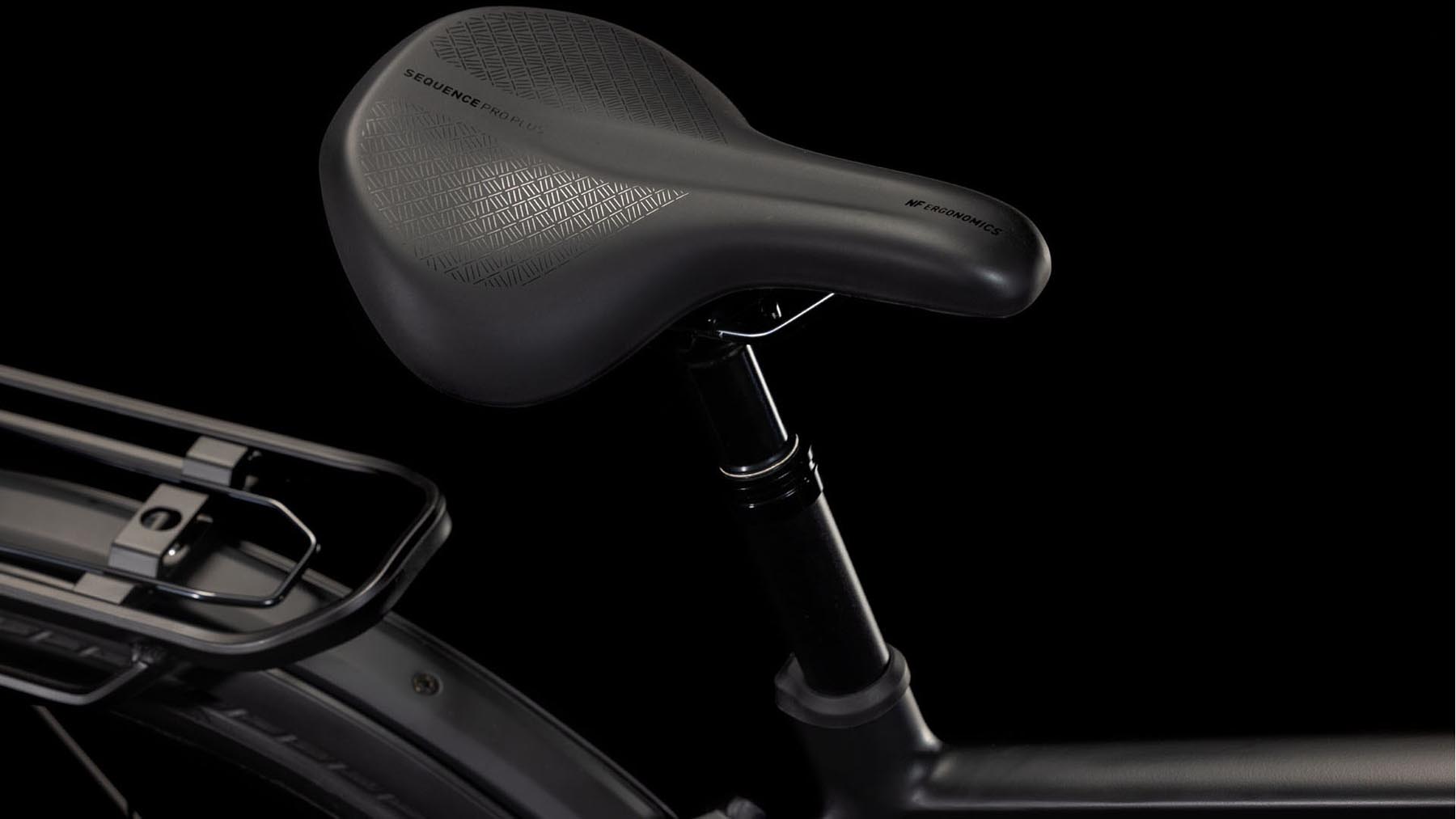

  • Saddle: ACID Sequence Pro Plus
  • Seat Post: CUBE Suspension Seatpost HD, 31.6mm

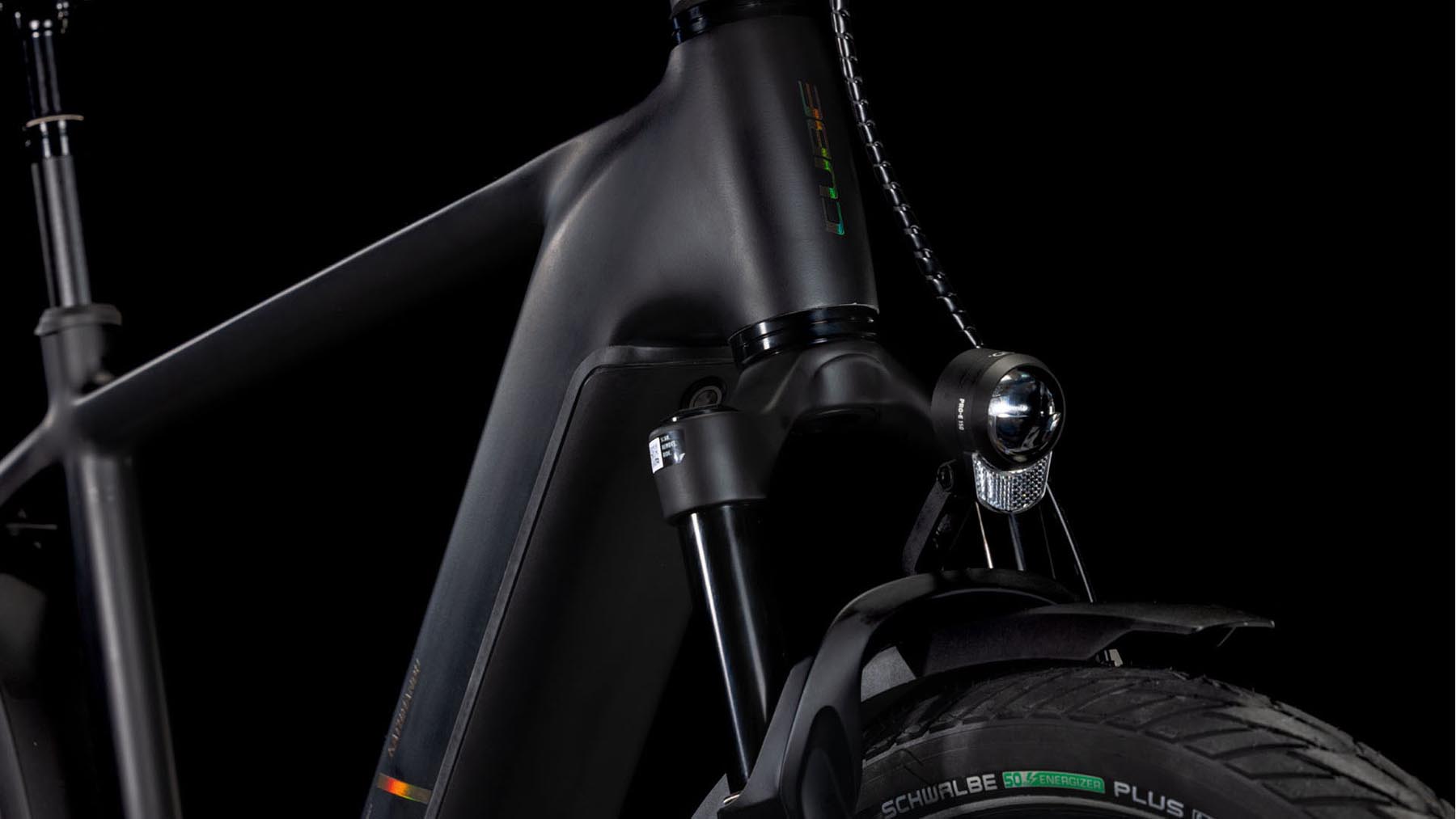

  • Front Light: ACID Front Light PRO-E 150 X-Connect, 12V, DC
  • Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC
  • Kickstand: ACID FM Pure Kickstand
  • Mudguards: ACID 65 Integrated Carrier 3.0
  • Bell: Easy Bell

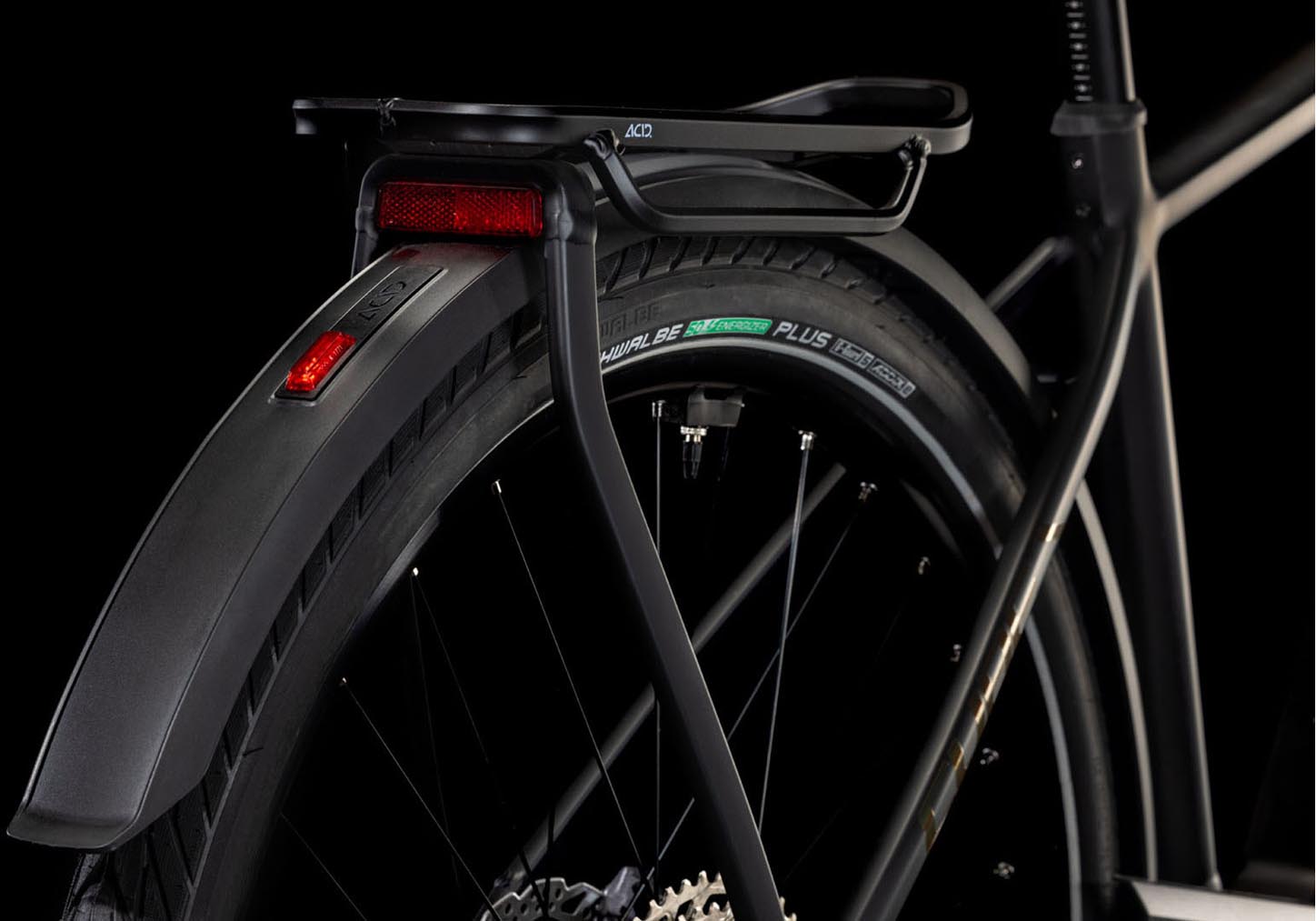

  • Rack: ACID Integrated Carrier 3.0, CUBE Adapter Compatible
Drive
  • Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
  • Shifter: Shimano Deore SL-M6100-IR, Direct Attach
  • Crankset: ACID MTB Hybrid Pro
  • Cassette: Shimano Deore CS-M6100, 10-51T
  • Chain: KMC e12
Brakes
  • Brakes: Shimano XT BR-M8120, Hydr. Disc Brake (180/180)
Wheels
  • Rims: CUBE EX25, 32H, Disc, Tubeless Ready
  • Hub Front: CUBE Engineered By Newmen, 15mm, Boost, Centerlock
  • Hub Rear: CUBE Engineered By Newmen, 12mm, Boost, Centerlock
  • Tires: Schwalbe Energizer Plus, Performance, Green Guard, 55-622
E-Bike System
  • Drive Unit: Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System
  • Battery: Bosch PowerTube 800
  • Charger: Bosch 2A
  • Remote System: Bosch LED Remote

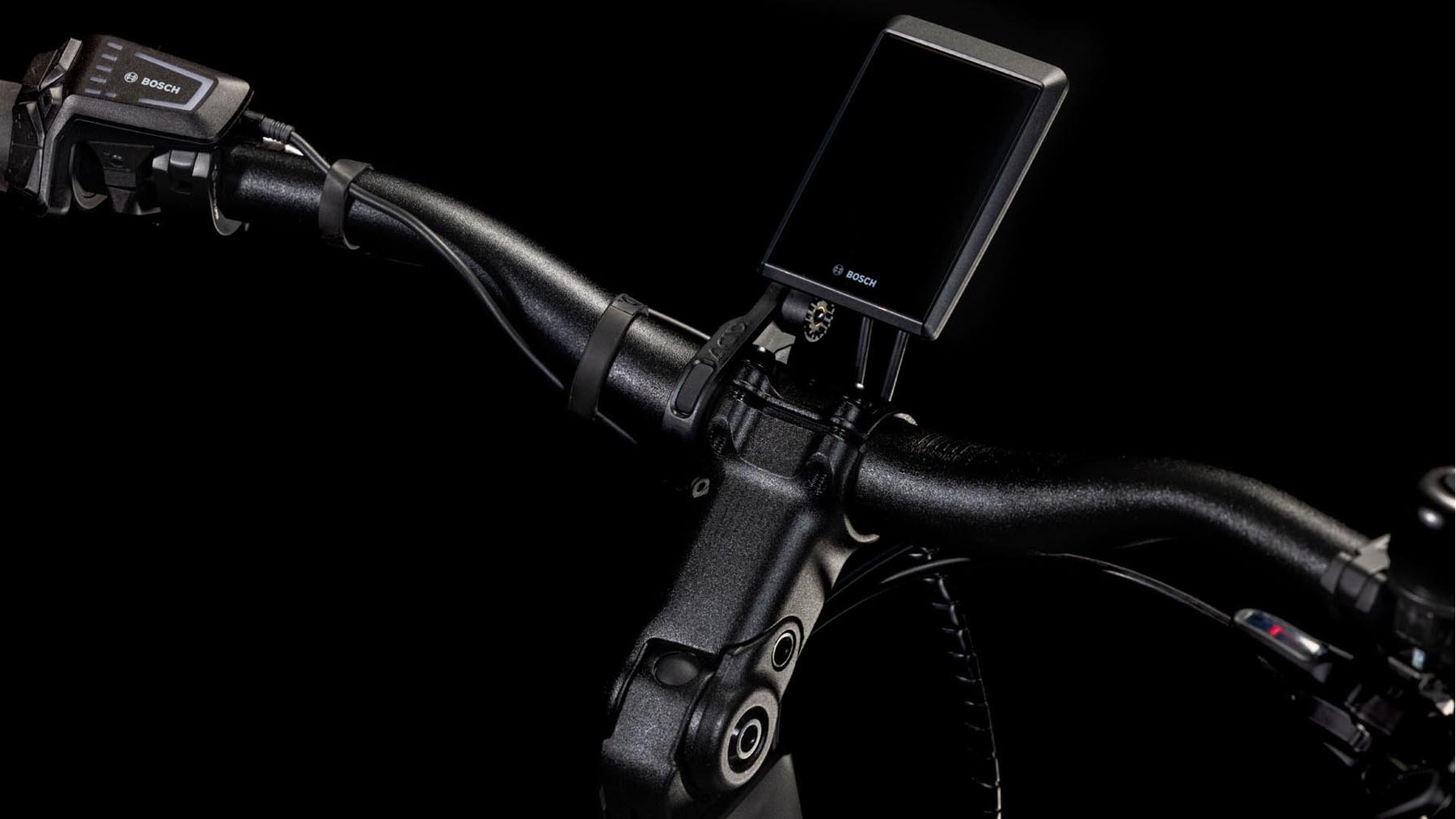

  • Display: Bosch Kiox 500
Additional Information
  • Color: black´n´prism
  • Weight (KG): 27,1 kg
  • Maximum weight allowed: 160 kg

Product description

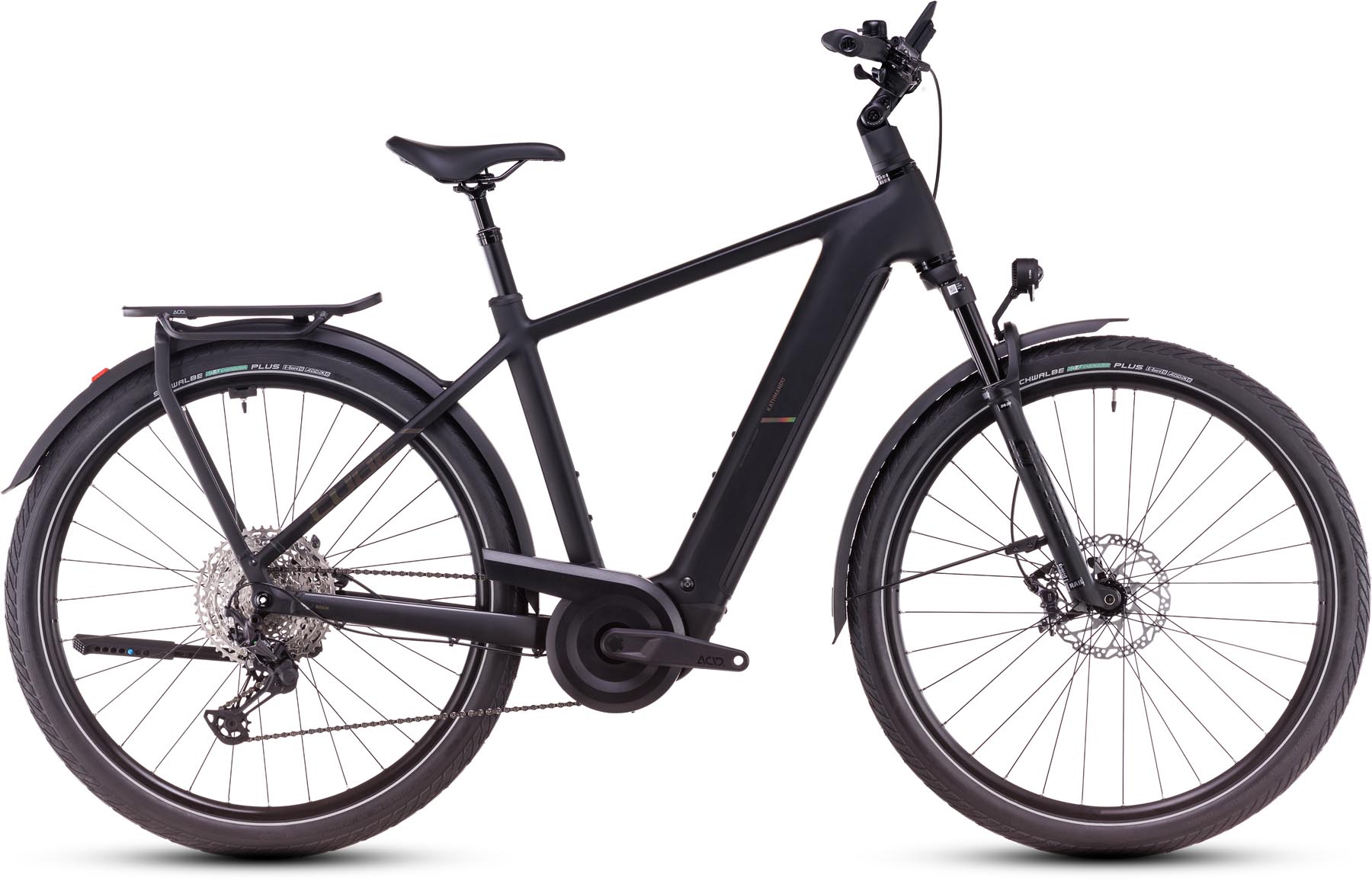

Cube Kathmandu Hybrid EXC 800 black n prism - Touring E-Bike Men

Cube Kathmandu Hybrid EXC black'n'prism - frame, color and type

The Cube Kathmandu Hybrid EXC in black'n ' prism is the ideal companion for anyone who is out and about on city tours as well as longer distances. With its robust aluminum Superlite frame, this e-bike not only provides a strong look, but also stability and comfort. Thanks to Gravity Casting Technology and Boost148, the frame offers more rigidity and thus enables a particularly safe riding experience. The design is perfectly complemented by the fully integrated Bosch PowerTube battery.

Notable details at a glance

  • Frame: Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Geometry
  • Color: black'n'prism
  • Fork: Fox 34 Float Sport AWL, 100 mm travel, e-bike optimized
  • Gears: Shimano XT 12-speed drivetrain for precise and reliable gear changes
  • Brakes: Shimano XT hydraulic disc brakes for maximum safety

Motor, battery and display of the Cube Kathmandu Hybrid EXC

The Cube Kathmandu Hybrid EXC black'n'prism is powered by a powerful Bosch Performance Line CX motor, which is equipped with the Smart system. This e-bike offers you the support you need to master steep climbs with ease. The Bosch Kiox display provides you with reliable information on speed, range and battery status. With the Bosch PowerTube battery, you are always well equipped - whether you prefer short distances or long tours. Thanks to the ACID Suspension Seatpost, comfort doesn't fall by the wayside either. In combination with the CUBE Comfort Trail Bar and the Schwalbe Energizer Plus tires, the Cube Kathmandu Hybrid EXC offers you a balanced and relaxed riding experience.

Rear derailleur, brakes and fork - perfect control on every ride

The combination of Shimano XT rear derailleur and Shimano XT hydraulic disc brakes guarantees you full control at all times. The 12-speed drivetrain works precisely and smoothly, while the Fox 34 Float Sport fork with its 100 mm travel effortlessly absorbs every bump. This makes the Cube Kathmandu Hybrid EXC suitable not only for smooth roads, but also for more demanding tours away from the city. Another plus point is the ACID Integrated Carrier 3.0, which offers you enough storage space for your daily rides.

[deeplNEW]

Who is the Kathmandu Hybrid EXC 800 suitable for?

For the experienced bike tourist. Some tours you put together in your head, but you can't cope with them in reality. With the high-performance bikes from this category, no way is too far and no ascent too steep. Extraordinary components and maximum comfort allow for routes that could previously only be mastered by car. With the bikes from this offer a package that leaves nothing to be desired for years to come and is future-proof as well as environmentally friendly.

Battery capacity: 800Wh
Bike Type: E-Bike, Trekking Bike
Display Type: Bosch Kiox 500
E-Bike Engine: Bosch Performance CX
Fahrradpedale: Mit Pedale
Frame shape: Diamond
Model year: 2025
Target Group: Men

Incidentally, your bike is delivered completely pre-assembled. All you have to do is put on the front wheel, adjust the handlebars and fit the pedals. It's very simple.

Info: Unless otherwise described, this item will be delivered by a forwarding agent “free kerbside”, i.e. to the public kerbside nearest to the delivery address.
